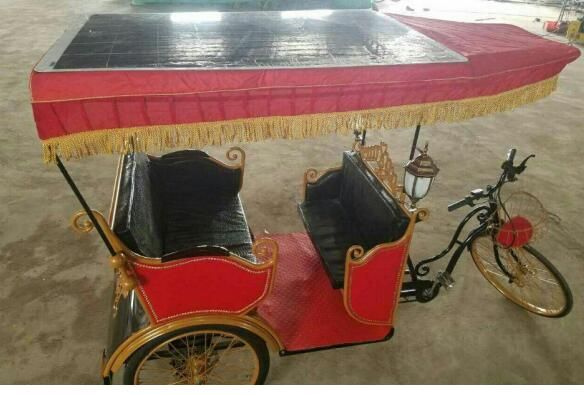

Specification and Characteristics of Solar Electric Rickshaw

1. Classical and excellent Design Style

2. with Solar panel on top, which could extend the mileage

3. With solar panel, which couls save resource and protect the environment

4. with 220 Disc brake system, totally gurantee the safety

5. 48V 20Ah Lead- acid Maintenance free battery

6. The solar panel could last 20~3 0 years

			for 2 passenger	for 4 passenger
Model			e rickshaw-2	e rickshaw-4
Dimension			2700X1200X1300mm	2900X1200X1300mm
Weight			190kg	210kg
Battery	Voltage		48v	48v
	Currency		20ah	20ah
	Material		Lead-acid maintenance-free battery
Electric Motor		Power	500w	500w
		Voltage	48V	48V
		Currency	20A	20A
		Material	Solid Acid	Solid Acid
Brake System			Oil Brake System with 220 brake disc
Solar Panel			300W
Max speed			25km/h	25km/h
Maximum gradability			25%	15-25%
Running distance			45km	40km
Load capacity			300kg	500kg
