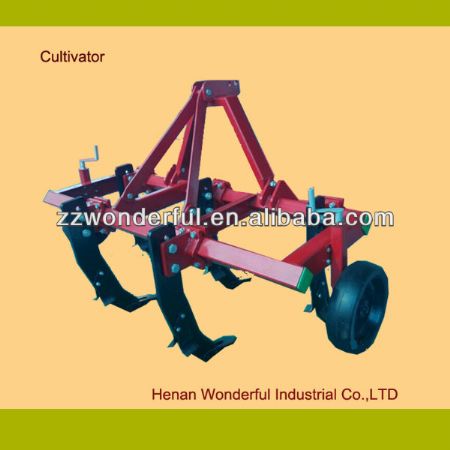

subsoiler plow agricultural cultivator small tractor subsoiler plow
Technical parameters of subsoiler plow
|
Item |
Unit |
Technical Parameter |
Remark |
|
Model |
|
1S-200 |
1S-250 |
|
|
Overall Dimension |
cm |
150*202*140 |
150*252*140 |
Length*Width*Height |
|
Weight |
kg |
420 |
560 |
|
|
Power |
kW |
44.1-58.8 |
66.2-88.2 |
Roller Tractor |
|
Rows of Deep Loosening |
Row |
4 |
6 |
|
|
Working Width |
cm |
200 |
300 |
|
|
Efficiency |
hm2/h |
0.4~0.6 |
0.6-0.8 |
|
|
Hook Mode |
Rear Hydraulic Full Suspension |
Specifications of subsoiler plow
This machine is the main corollary equipment for the realization of conservation tillage,
which can be used together with the no-tillage and seeding machine,
The soil depth and loose intervals can for coexists in the topsoil structure.
The imaginary part stores deep water, while the real part provides humidity raising.
It breaks the formation of long-term tillage.
It is conductive to the infiltration of rain and the development of crop root.
It improves the soil permeability, air permeability and soil aggregate structure, which which increase the production . |
