DETAILED
ZHNY-15 helicopter sprayer

Specification of zhny-15 helicopter





Technical Specification
Model ZHNY-15 helicopter sprayer
Loading capacity 15 kg ,   take-off weight 36kg
Spray Width 3-6 meters (spray rate decision by the altitude).
Flight height 0 - 3000m altitude, 1-3 meters to the top of the crop
Sprayer Capacity 1500 m² /min
Gasoline Engine 80CC   double-cylinder opposed Air-Cooling
fuel type gasoline 93. 97 (Add two stroke engine oil 1:35)
Fuel consumption 6L / h
Main Rotor Diameter 980mm
fleight size 2100*560*720mm
Pesticide box size 545*358*85mm
Mu dosage 300-500 ml / mu



Flight speed 4-8 m / s
Spray speed 0-6 m / s (adjustable).
Start electric start outside.
Flight Control System GPS.

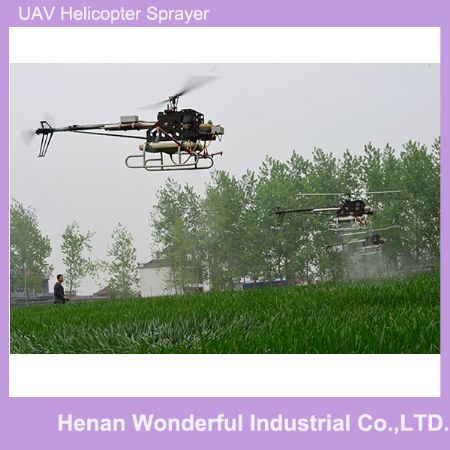

 Pictures of zhny-15 helicopter



















Other agriculture sprayer pls click the following picture









 Q&A  of  herbicide sprayers

1
Q: Will the wind generated by the plant protection UAV have an impact on the efficIciency ?
A:  No, pesticide use is generally high concentrations of pesticides,
    a huge rotary force generated by helicopter rotor will push the pesticide droplets into the crop from top to bottom

Q: Why not use the electric plant protection but use the aircraft oil power?
A: Poly lithium batteries cost too high, load capacity of 10 kg of pesticides sprayed a group of unmanned helicopter batteries cost about USD800.
    Poly lithium battery cycle life is very unstable



3

Q: The basic criteria for judging the quality of the aircraft:
A:  Appearance neat, clean, well maintained, no rust, no cracks.
.   Various ball joints flexible, non-virtual spaces,
    Large paddle tail, paddle clips elastic medium, no virtual swashplate up and down ..




After-sale Service



  • one year guarantee for whole machine
  • 24 hours technical support br e-mail
  • calling or door-to-door service
  • use friendly English software,user manual and detailer Videos/CD







PLease feel free to contact us, if you are satisfied with our products.

we will try our best to meet your needs  !!!



looking forward to cooperating with you !!!



Believe that we are your best Choice !!!
